l Module size: 90 x 70 x 20 mm

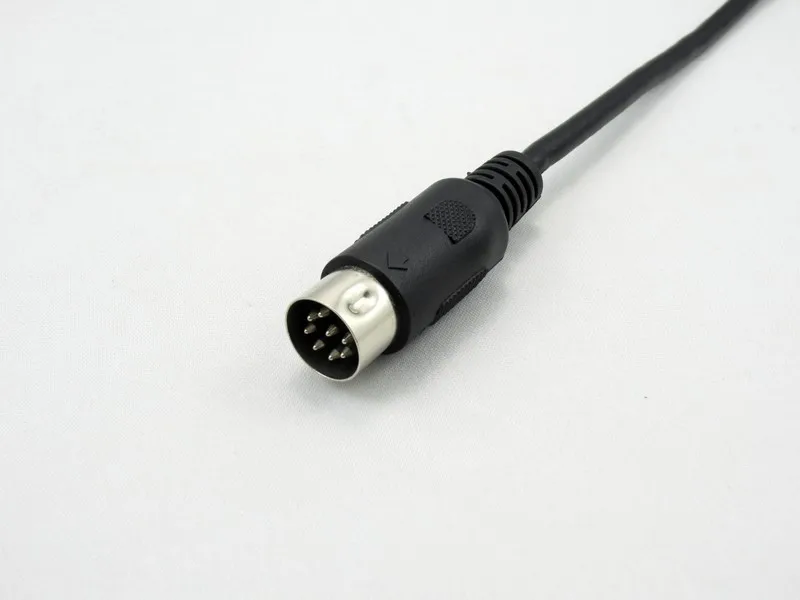

l CDC plug length :100cm; iPod cable length: 120cm;
l AUX cable length: 50cm
l Standard Packing box: 210 x 150 x 60mm
l Middle-size packing box: 142 x 96 x 64mm
l Module weight: 80 grams;
l Gross weight: 260g-440 grams;
l 80 Middle boxes/big carton
This is an Audio car kit. It is a replacement of CD changer.It can be easily installed and used. The installation and usage are the same as CD changer's installation and usage, simply plug in USB disk/SD card/iPod, you can play audio through car audio system and enjoy music in your car. After connected with optional Bluetooth module kit ,it integrates bluetooth hands freephone call and stream mobile phone’s A2DP music playback into car stereo system.
1. Plug&play, modular design, CDC alternative
2. Connected with wire harness, not FM signal controlled ,Hi-Fi guaranteed
3. Controlled by vehicle Head Unit, support Steering wheel operation
4. With Hi-Fi Decoding Chip, perfectly support MP3/WMA/WAV tracks
5. Supports SD/SDHC/MMC card/U Disk/Card Reader/Hard Disk/iPod/iPhone
6. Keeps iPod/iPhone charged
7. Supports external audio source (PSP,Mobile phone,iPad) via AUX in port
8. Play list function same as multi CDs
9. Supports Last Position Memory (LPM)
10. Vibration and interference proof
11. Easy to install, no damage to original car interior
12. Different module firmware versions for different types of protocol of car stereos
13. With BT slot for additional Bluetooth hands-free kit(YT-BTM)
Voltage Input : 11V~14.6V DC
Operational Current : 200mA
Standby Current : 3mA
Operating Temperature: -35C~+85C
DAC Resolution : 20bit
Total Harmonic Distortion : 0.05%
SN Ratio : 90dB
Frequency Response : 20HZ-20KHZ
Module case is made of aluminum alloy
Supported memory cards and USB sticks:
1. Max 16GB (2GB is most recommended); SD card is more recommended than USB stick.
Sometimes, you may have to change for another USB stick or another SD card if music files are not played normally.
2. Please format USB stick or SD card with FAT16 or FAT32 format before you save files and folders in USB/SD.
NTFS format is not supported.
Note: It is better to format your USB/SD on windows PC than on Apple Mac to play USB/SD on our YT-M07
3. Imposed folder naming system: CD01, CD02, CD03 ...CD15. .Supports up to 15 folders (depending on the radio type) on your USB/SD. Doesn't read sub-folder and gets confused with other names in root of the drive.
4. Any number of songs can be stored in each folder, but the display of most radio models can only screen 99 track titles.Saving too big file(over 50MB) in any folder may also cause intermittent performance
5. Using music files formats other than WMA and MP3 may also cause intermittent performance.
6. Supported MP3/WMA/WAV files of 8Kbps-320Kbps only; MP3/WMA files over 320Kbps may not be recognized or played
7. The playback order of songs is in line with their created date.
8. Sometimes,to remove defect on software of car audio system, you may need to disconnect the battery or remove the fuse to reset the car audio system.
9. To use the Aux-In port, it's necessary to remove the USB or SD card.
The step to install:
1.Pull out the head unit from the car and touch the back of the head unit for CDC port when the ignition is switched of.
2.Insert the CDC plug into the original car port correspondingly.then insert the storge card.
3.Then check if the device works normally or not after power supply given from the car itself .
4.Put the wire harness into the proper and good place after the test successfully .
Yatour Bluetooth hand-free Kit(Optional)
Compatible with following iPod/iPhone models (Including Charging):
iPhone 5S 5C 5 with lightning adapter
iPhone 2G 3G 3GS 4G4GS
iPod touch 1st, 2nd, 3rd and 4th generations
iPod nano 1st, 2nd, 3rd, 4th, 5th and 6th generations
iPod Mini 1st, 2nd generations
iPod Video, iPod Photo, iPod Classic 4th, 5th and 6th generations
Compatible with iPad iPad2 iPad3 (Does not charge iPad unless iPad’s screen is sleeping, charges slowly)
Note: iPhone 5/5S/5C requires a lightning to 30pin adapter so as to be compatible with YT-M07.
Important Installation Information:
Your car head unit should be CD changer capable. This device is applied to orignal car audio equiptment or upgraded car audio equiptment with supporting digital music changer ports only , furthermore , same brand car with different model should use individual digital music changer . Each car use specific device . More options coming soon available for your choice .The in-dash CD changer will remain working, but external CD changer are switchable by a switch on the wire harness.
